React Native Setup

This tutorial will guide you through integrating the iOS bindings and Android bindings into an React Native) project. Before you begin, make sure you’ve completed the "Getting Started - 3. Mopro build" process with selecting iOS platform and Android platform and have the MoproiOSBindings and MoproAndroidBindings folder ready:

React Native is a JavaScript framework that enables developers to build native apps for multiple platforms with a single codebase.

In this tutorial, you will learn how to create a native Mopro module on both Android and iOS simulators/devices.

info

In this example, we use Circom circuits and their corresponding .zkey files. The process is similar for other provers.

0. Initialize an React Native project

First let's create a new React Native project. If you already have a React Native project you can skip this step.

Getting started with React Native: Official documentation

info
The Expo framework is recommended by the React Native community. (Last updated on Apr 14, 2025)
We will use the Expo framework throughout this documentation.
Ref: Start a new React Native project with Expo
After creating a React Native project, you should be able to run with a commands like
```
npm run ios
```
for iOS simulators. And
```
npm run android
```
for Android emulators.

1. Creating a Native Module

Creating a native module by the command

npx create-expo-module --local mopro

It will create a native module named mopro in the modules/mopro folder with the structure like this

├── modules
│   └── mopro
│     ├── android
│     ├── expo-module.config.json
│     ├── index.ts
│     ├── ios
│     └── src

info

Ref: Tutorial: Creating a native module, Wrap third-party native libraries

2. Implement the module on iOS

info

Please refer to react-native-app to see the latest update.

2-1 Use a framework

Get the MoproiOSBindings from mopro build.

info
See Getting Started
Copy the MoproiOSBindings directory to modules/mopro/ios

Bundle the bindings in Mopro.podspec

/modules/mopro/ios/Mopro.podspec
    ...
    s.dependency 'ExpoModulesCore'
    s.vendored_frameworks = 'MoproiOSBindings/MoproBindings.xcframework'
    ...

2-2 Create convertible types for Javascript library with swift.

Create a new file called MoproType.swift in the following folder: modules/mopro/ios

Full /modules/mopro/ios/MoproType.swift

/modules/mopro/ios/MoproType.swift
import ExpoModulesCore

struct ExpoG1: Record {
    @Field
    var x: String?

    @Field
    var y: String?

    @Field
    var z: String?

}

struct ExpoG2: Record {
    @Field
    var x: [String]?

    @Field
    var y: [String]?

    @Field
    var z: [String]?

}

struct ExpoProof: Record {
    @Field
    var a: ExpoG1?

    @Field
    var b: ExpoG2?

    @Field
    var c: ExpoG1?

    @Field
    var `protocol`: String?

    @Field
    var curve: String?

}

struct ExpoCircomProofResult: Record {
    @Field
    var inputs: [String]?

    @Field
    var proof: ExpoProof?

}

enum ProofLibOption: Int, Enumerable {
    case arkworks
    case rapidsnark
}

struct ExpoCircomProofLib: Record {
    @Field
    var proofLib: ProofLibOption = .arkworks
}

2-3. Create native module implementation in `MoproModule.swift`

Define helper functions to bridge types between the Mopro bindings and the Expo framework:

/modules/mopro/ios/MoproModule.swift helpers

/modules/mopro/ios/MoproModule.swift
import ExpoModulesCore
import moproFFI

  // convert the mopro proofs to be exposed to Expo framework
  func convertCircomProof(proof: CircomProof) -> ExpoProof {

      let a = ExpoG1()
      a.x = proof.a.x

      a.y = proof.a.y
      a.z = proof.a.z

      let b = ExpoG2()
      b.x = proof.b.x
      b.y = proof.b.y
      b.z = proof.b.z

      let c = ExpoG1()
      c.x = proof.c.x
      c.y = proof.c.y
      c.z = proof.c.z

      let expoProof = ExpoProof()
      expoProof.a = a
      expoProof.b = b
      expoProof.c = c
      expoProof.protocol = proof.protocol
      expoProof.curve = proof.curve
      return expoProof
  }

  // convert the Expo proofs to be used in mopro bindings
  func convertCircomProofResult(proofResult: ExpoCircomProofResult) -> CircomProofResult {
      guard let proof = proofResult.proof,
      let a = proof.a,
      let b = proof.b,
      let c = proof.c,
      let inputs = proofResult.inputs,
      let `protocol` = proof.protocol,
      let curve = proof.curve
      else {
          fatalError("Invalid proof result")
      }

      let g1a = G1(x: a.x ?? "0", y: a.y ?? "0", z: a.z ?? "1")
      let g2b = G2(x: b.x ?? ["1", "0"], y: b.y ?? ["1", "0"], z: b.z ?? ["1", "0"])
      let g1c = G1(x: c.x ?? "0", y: c.y ?? "0", z: c.z ?? "1")

      let circomProof = CircomProof(
          a: g1a, b: g2b, c: g1c, protocol: `protocol`, curve: curve)
      let circomProofResult = CircomProofResult(proof: circomProof, inputs: inputs)
      return circomProofResult
  }

  enum CircomError: Error {
      case circomProofGenerationFailed(String)
      case circomProofVerificationFailed(String)
  }

Define the native module API. See the Module API Reference for details.

modules/mopro/ios/MoproModule.swift
public class MoproModule: Module {
// Each module class must implement the definition function. The definition consists of components
// that describes the module's functionality and behavior.
// See https://docs.expo.dev/modules/module-api for more details about available components.
public func definition() -> ModuleDefinition {
    // Sets the name of the module that JavaScript code will use to refer to the module. Takes a string as an argument.
    // Can be inferred from module's class name, but it's recommended to set it explicitly for clarity.
    // The module will be accessible from `requireNativeModule('Mopro')` in JavaScript.
    Name("Mopro")
    // ...
    AsyncFunction("generateCircomProof") {
        (zkeyPath: String, circuitInputs: String, expoProofLib: ExpoCircomProofLib) -> ExpoCircomProofResult in

        do {
            let proofLib = expoProofLib.proofLib == ProofLibOption.arkworks ? ProofLib.arkworks : ProofLib.rapidsnark
            let res = try generateCircomProof(
                zkeyPath: zkeyPath, circuitInputs: circuitInputs, proofLib: proofLib)
            let result = ExpoCircomProofResult()
            result.inputs = res.inputs
            result.proof = convertCircomProof(proof: res.proof)
            return result
        } catch {
            throw CircomError.circomProofGenerationFailed(error.localizedDescription)
        }
    }

    AsyncFunction("verifyCircomProof") {
        (zkeyPath: String, proofResult: ExpoCircomProofResult, proofLib: ExpoCircomProofLib) -> Bool in

        do {
            let proofLib = proofLib.proofLib == .arkworks ? ProofLib.arkworks : ProofLib.rapidsnark
            let isValid = try verifyCircomProof(
                zkeyPath: zkeyPath,
                proofResult: convertCircomProofResult(proofResult: proofResult),
                proofLib: ProofLib.arkworks
            )
            return isValid
        } catch {
            throw CircomError.circomProofVerificationFailed(error.localizedDescription)
        }
    }
    // ...
}

3. Implement the module on Android

info

Please refer to react-native-app to see the latest update.

3-1. Add dependency for jna in the file `build.gradle`.

/modules/mopro/android/build.gradle
dependencies {
  implementation("net.java.dev.jna:jna:5.13.0@aar")
}

3-2. Include Mopro bindings in the native Android module

Get the MoproAndroidBindings from mopro build.
info
See Getting Started

Move the jniLibs directory to modules/mopro/android/src/main/.
And move uniffi directory to modules/mopro/android/src/main/java/.
The folder structure should be as follows:

modules/mopro/android/src/main
├── AndroidManifest.xml
├── assets
├── java
│   ├── expo
│   │   └── modules
│   │       └── mopro
│   │           ├── MoproModule.kt
│   │           └── MoproView.kt
│   └── uniffi
│       └── mopro
│           └── mopro.kt
└── jniLibs
    ├── arm64-v8a
    ├── armeabi-v7a
    ├── x86
    └── x86_64

3-3. Create convertible types for Javascript library with kotlin.

It is a better way to represent a JavaScript object with the native type safety.

Create a new file called MoproType.kt in the following folder: modules/mopro/android/src/main/java/expo/modules/mopro/

Full /modules/mopro/android/src/main/java/expo/modules/mopro/MoproType.kt

modules/mopro/android/src/main/java/expo/modules/mopro/MoproType.kt
package expo.modules.mopro

import expo.modules.kotlin.records.Field
import expo.modules.kotlin.records.Record
import expo.modules.kotlin.types.Enumerable

class ExpoG1 : Record {
    @Field var x: String?

    @Field var y: String?

    @Field var z: String?

    constructor(_x: String, _y: String, _z: String) {
        x = _x
        y = _y
        z = _z
    }
}

class ExpoG2 : Record {
    @Field var x: List<String>?

    @Field var y: List<String>?

    @Field var z: List<String>?

    constructor(_x: List<String>, _y: List<String>, _z: List<String>) {
        x = _x
        y = _y
        z = _z
    }
}

class ExpoProof : Record {
    @Field var a: ExpoG1?

    @Field var b: ExpoG2?

    @Field var c: ExpoG1?

    @Field var `protocol`: String?

    @Field var curve: String?

    constructor(_a: ExpoG1, _b: ExpoG2, _c: ExpoG1, _protocol: String, _curve: String) {
        a = _a
        b = _b
        c = _c
        `protocol` = _protocol
        curve = _curve
    }
}

class ExpoCircomProofResult : Record {
    @Field var proof: ExpoProof?

    @Field var inputs: List<String>?

    constructor(_proof: ExpoProof, _inputs: List<String>) {
        proof = _proof
        inputs = _inputs
    }
}

enum class ProofLibOption(val value: Int) : Enumerable {
    arkworks(0),
    rapidsnark(1)
}

class ExpoCircomProofLib : Record {
    @Field
    val proofLib: ProofLibOption = ProofLibOption.arkworks
}

info

Ref: Records

3-4. Create native module implementation in `MoproModule.kt`

Define helper functions to bridge types between the Mopro bindings and the Expo framework:

/modules/mopro/android/src/main/java/expo/modules/mopro/MoproModule.kt helpers

/modules/mopro/android/src/main/java/expo/modules/mopro/MoproModule.kt
// convert the mopro proofs to be exposed to Expo framework
fun convertCircomProof(proof: CircomProof): ExpoProof {
    var a = ExpoG1(proof.a.x, proof.a.y, proof.a.z)
    var b = ExpoG2(proof.b.x, proof.b.y, proof.b.z)
    var c = ExpoG1(proof.c.x, proof.c.y, proof.c.z)
    var output = ExpoProof(a, b, c, proof.protocol, proof.curve)
    return output
}

// convert the Expo proofs to be used in mopro bindings
fun convertCircomProofResult(proofResult: ExpoCircomProofResult): CircomProofResult {
    var g1a = G1(proofResult.proof?.a?.x ?: "0", proofResult.proof?.a?.y ?: "0", proofResult.proof?.a?.z ?: "1")
    var g2b = G2(proofResult.proof?.b?.x ?: listOf("1", "0"), proofResult.proof?.b?.y ?: listOf("1", "0"), proofResult.proof?.b?.z ?: listOf("1", "0"))
    var g1c = G1(proofResult.proof?.c?.x ?: "0", proofResult.proof?.c?.y ?: "0", proofResult.proof?.c?.z ?: "1")
    var circomProof = CircomProof(g1a, g2b, g1c, proofResult.proof?.protocol ?: "groth16", proofResult.proof?.curve ?: "bn128")
    var circomProofResult = CircomProofResult(circomProof, proofResult.inputs ?: listOf("0"))
    return circomProofResult
}

Define the native module API. See the Module API Reference for details.

modules/mopro/android/src/main/java/expo/modules/mopro/MoproModule.kt
class MoproModule : Module() {
// Each module class must implement the definition function. The definition consists of components
// that describes the module's functionality and behavior.
// See https://docs.expo.dev/modules/module-api for more details about available components.
override fun definition() = ModuleDefinition {
    // Sets the name of the module that JavaScript code will use to refer to the module. Takes a string as an argument.
    // Can be inferred from module's class name, but it's recommended to set it explicitly for clarity.
    // The module will be accessible from `requireNativeModule('Mopro')` in JavaScript.
    Name("Mopro")
    // ...
    AsyncFunction("generateCircomProof") { zkeyPath: String, circuitInputs: String, expoProofLib: ExpoCircomProofLib ->
        try {
            val file = File(zkeyPath)

            if (!file.exists()) {
                throw CodedException("ZkeyFileNotFound", "The zkey file was not found at path: $zkeyPath", null)
            }

            val proofLib = if (expoProofLib.proofLib == ProofLibOption.arkworks) ProofLib.ARKWORKS else ProofLib.RAPIDSNARK
            val res = generateCircomProof(file.absolutePath, circuitInputs, proofLib)
            ExpoCircomProofResult(convertCircomProof(res.proof), res.inputs)
        } catch (e: Exception) {
            throw CodedException("GenerateProofFailed", "Unknown error occurred during proof generation", e)
        }
    }

    AsyncFunction("verifyCircomProof") { zkeyPath: String, proofResult: ExpoCircomProofResult, expoProofLib: ExpoCircomProofLib ->
        try {
            val file = File(zkeyPath)
            if (!file.exists()) {
                throw CodedException("ZkeyFileNotFound", "The zkey file was not found at path: $zkeyPath", null)
            }
            val proofLib = if (expoProofLib.proofLib == ProofLibOption.arkworks) ProofLib.ARKWORKS else ProofLib.RAPIDSNARK
            val isValid = verifyCircomProof(file.absolutePath, convertCircomProofResult(proofResult), proofLib)
            isValid
        } catch (e: Exception) {
            throw CodedException("VerifyProofFailed", "Unknown error occurred during proof verification", e)
        }
    }
    // ...
}

4. Define typescript APIs

info

Please refer to react-native-app to see the latest update.

Define the types for the native module. Add the following types in the file:

/modules/mopro/index.ts
// Define the G1 type
export type G1 = {
    x: string;
    y: string;
    z: string;
};

// Define the G2 type
export type G2 = {
    x: string[];
    y: string[];
    z: string[];
};

// Define the CircomProof type
export type CircomProof = {
    a: G1;
    b: G2;
    c: G1;
    protocol: string;
    curve: string;
};

// Define the CircomProofResult type
export type CircomProofResult = {
    proof: CircomProof;
    inputs: string[];
};

export enum ProofLibOption {
    Arkworks,
    Rapidsnark,
}

export type CircomProofLib = {
    proofLib: ProofLibOption;
};

Add the native module's API functions in the same file.

/modules/mopro/index.ts
export async function generateCircomProof(
    zkeyPath: string,
    circuitInputs: string,
    proofLib: CircomProofLib
): Promise<CircomProofResult> {
    return await MoproModule.generateCircomProof(
        zkeyPath,
        circuitInputs,
        proofLib
    );
}

5. Run the app

5.1 Install expo-asset

Install expo-asset to use assets.

npx expo install expo-asset

5.2 Check the expo command

The android and ios scripts should be defined as follows to support running with the mobile native modules:

package.json
{
    ...
    "scripts": {
        ...
        "android": "expo run:android",
        "ios": "expo run:ios",
        ...
    }
    ...
}

5.3 Generate proofs in the app

Here is an example demonstrating how to generate a proof within an app:

import {
    generateCircomProof,
    verifyCircomProof,
    ProofLibOption,
    CircomProofLib,
    CircomProofResult,
} from "@/modules/mopro";

const circuitInputs = {
    a: ["3"],
    b: ["5"],
};
const proofLib: CircomProofLib = {
    proofLib: ProofLibOption.Arkworks,
};
const result: CircomProofResult = await generateCircomProof(
    zkeyPath.replace("file://", ""),
    JSON.stringify(circuitInputs),
    proofLib
);
const valid: boolean = await verifyCircomProof(
    zkeyPath.replace("file://", ""),
    result,
    proofLib
);

info

Please refer to react-native-app to see the latest update.

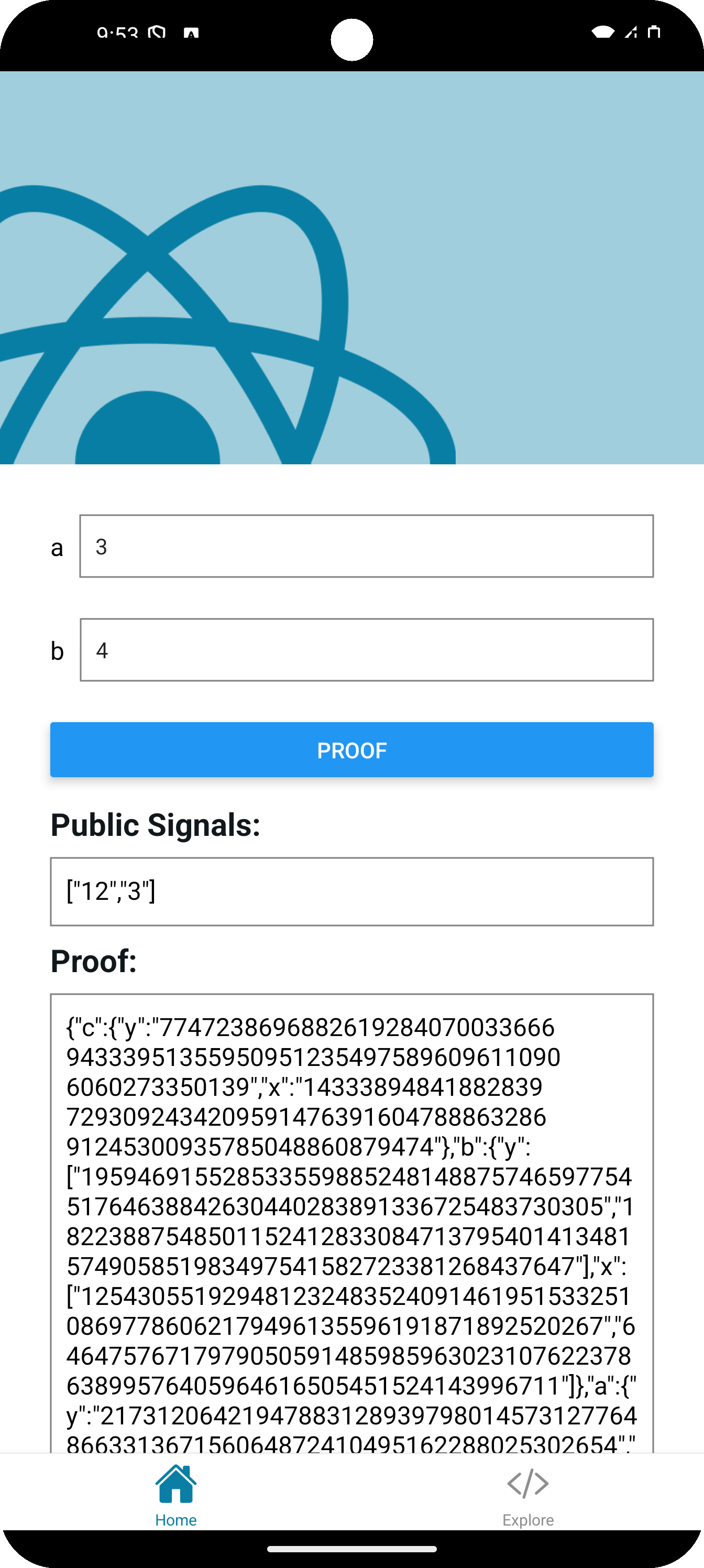

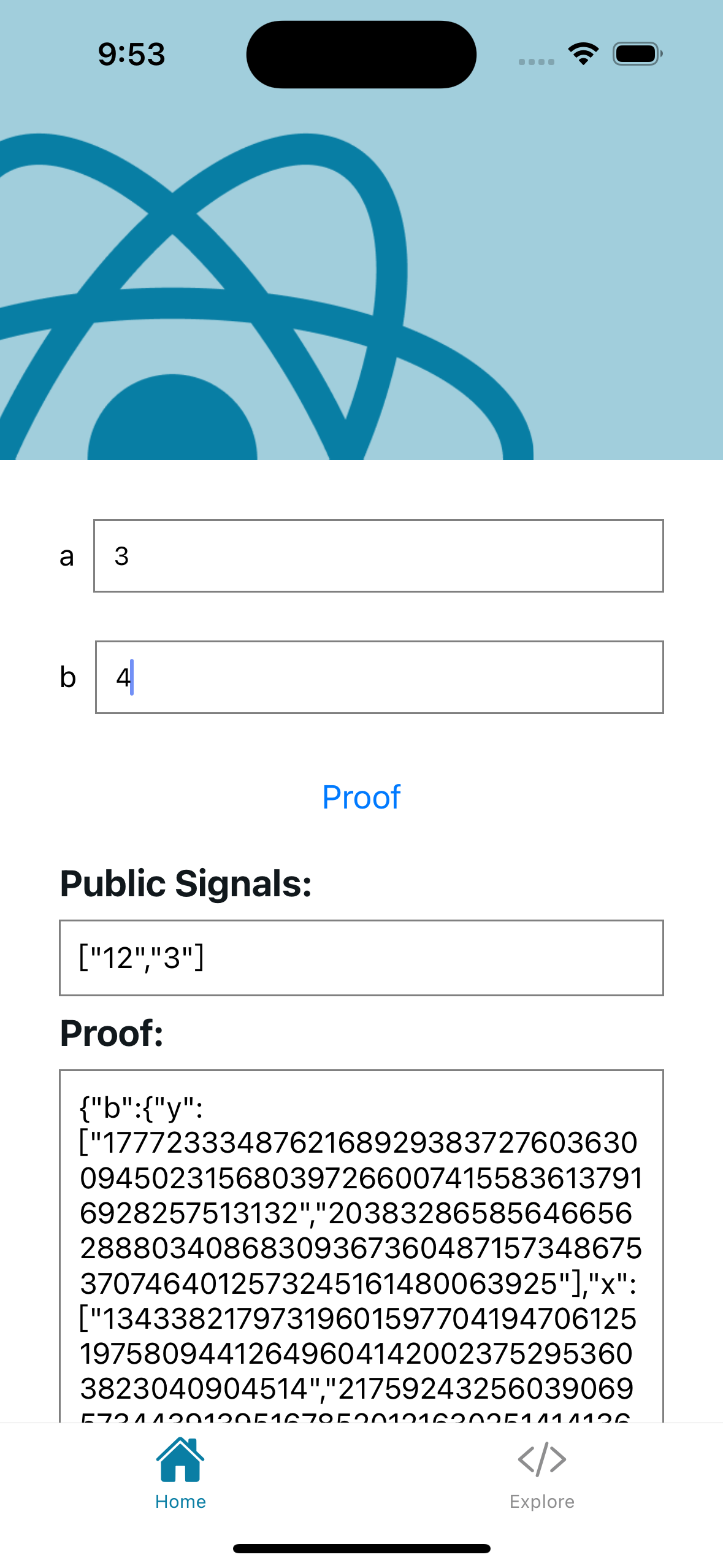

5.4 Run in simulators

Android

Export ANDROID_HOME

export ANDROID_HOME="~/Library/Android/sdk"

Then run

npm run android

iOS
```
npm run ios
```

6. What's next

Update your ZK circuits as needed. After making changes, be sure to run:
```
mopro build
mopro update
```
warning
mopro update only works if the Android project was created within the Rust project directory during mopro init. Otherwise, you can manually update the bindings by following Step 2-1 and Step 3-2.

This ensures the bindings are regenerated and reflect your latest updates.
Build your mobile app frontend according to your business logic and user flow.
Expose additional Rust functionality: If a function is missing in Swift, Kotlin, React Native, or Flutter, you can:
- Add the required Rust crate in Cargo.toml
- Annotate your function with #[uniffi::export] (See the Rust setup guide for details).
  Once exported, the function will be available across all supported platforms.

React Native Setup

0. Initialize an React Native project​

1. Creating a Native Module​

2. Implement the module on iOS​

2-1 Use a framework​

2-2 Create convertible types for Javascript library with swift.​

2-3. Create native module implementation in MoproModule.swift​

3. Implement the module on Android​

3-1. Add dependency for jna in the file build.gradle.​

3-2. Include Mopro bindings in the native Android module​

3-3. Create convertible types for Javascript library with kotlin.​

3-4. Create native module implementation in MoproModule.kt​

4. Define typescript APIs​

5. Run the app​

5.1 Install expo-asset​

5.2 Check the expo command​

5.3 Generate proofs in the app​

5.4 Run in simulators​

6. What's next​

0. Initialize an React Native project

1. Creating a Native Module

2. Implement the module on iOS

2-1 Use a framework

2-2 Create convertible types for Javascript library with swift.

2-3. Create native module implementation in `MoproModule.swift`

3. Implement the module on Android

3-1. Add dependency for jna in the file `build.gradle`.

3-2. Include Mopro bindings in the native Android module

3-3. Create convertible types for Javascript library with kotlin.

3-4. Create native module implementation in `MoproModule.kt`

4. Define typescript APIs

5. Run the app

5.1 Install expo-asset

5.2 Check the expo command

5.3 Generate proofs in the app

5.4 Run in simulators

6. What's next
